Bagno
Faster, safer and less expensive installation of shower trays. The height-adjustable feet are fastened to the frame under the edge of the tray, ensuring an even load distribution over the entire frame when the shower is in use, eliminating the need to underpin the shower tray.
Two options available:
Foot System for FLOOR Caro Shower Tray 900 x 900 mm
Foot System for FLOOR Caro Shower Tray 1000 x 1000 mm
Details:
Weight (Net): 4,5 kg
Material: Metal
General information on the linked PDF.
Three options available:
Foot System for Floor Corner Shower Tray 800 x 1000 / 1000 x 800 mm
Foot System for Floor Corner Shower Tray 900 x 900 mm
Foot System for Floor Corner Shower Tray 1000 x 1000 mm
Details:
Weight (Net): 4,1 kg
Material: Metal
General information on the linked PDF.
Support cradles with height adjustable leveling feet, for easy, efficient, safe and cost effective installation of baths.
Five options available as shown in the gallery below.
Details:
Weight (Net): 2 kg
Material: Metal
Scope of Delivery:
Includes a set of two pairs of feet and cradle strapping.
The Sensory electronic invisible overflow system combines outlet and overflow in a single element that is installed out of sight beneath the bath. Designed for use with LUX SHAPE baths, aesthetically minimal and functionally innovative, the system is concealed in a compartment finished in match to the bath frame. The Sensory system adds a reductionist profile to any bath, and conserves clean lines even in freestanding models. An integrated pressure sensor contains water at a maximum soaking level but below the overflow point, opening the plug as soon as it has risen to the pre-set.
The operation of the Sensory simply requires the press of the valve to close the outlet and allow water to run. The sensor takes constantly checks the water pressure, and automatically opens the drain for a moment as soon as the pressure exceeds a pre-set maximum level. This regulates the level of the bath effectively and safely and prevents accidental overflow if water is left running. The maximum water level is pre-set at the factory, and can be adjusted to the size of the bath and the user’s individual preferences on installation. In the event of a power outage, a back-up battery mode engages automatically.
Available in chrome or white as shown in the gallery below.
Details:
Weight (Net): 1,85 kg
Scope of Delivery:
Control box
12-volt mains unit
Emergency battery
Two 8-m control cables
The quiet, discreet Spring Tap integrated filler fills from the floor of the bath. Natural in aesthetic, water as if sourced from an underground wellspring, silently and luxuriously with an elegant spray pattern.
Available in chrome, ø 52 mm and ø 90 mm, standard and for silhouette model baths which are pre-fitted at factory, per the gallery below.
Details:
Weight (Net): 1 kg
The Splash cascading filler, an impressive waterfall tap that takes bathing closer to nature. Water flows from the horizontal filler in a rich, wide gush – for the experience of a mountain stream springing forth from a crevice. The angle of impact flat so water fills with a relaxing pleasant burbling sound. The understated and elegantly made spout is of chrome-plated brass, and can be factory-fitted to various model baths.
Details:
Weight (Net): ,8 kg
The Spa Whirlsystem is an air jetted whirlpool, electronically controlled for power and interval adjustment that can be factory-fitted to various model baths. The standard system comprises up to twelve bottom jets. The spa system is also available with eighteen jets to accommodate the expansive SPA.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1

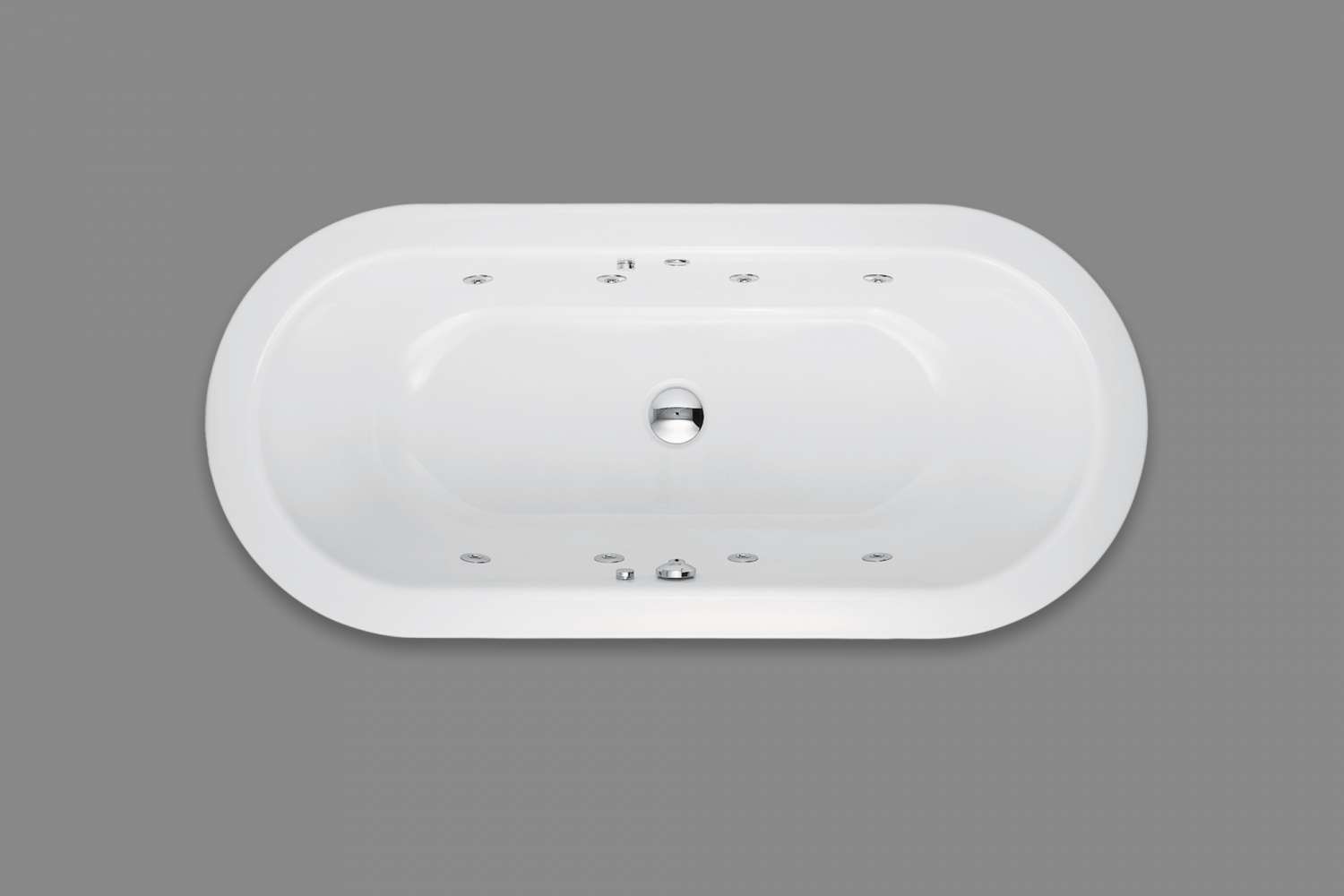

The Jet Whirlsystem is a water jet whirlpool with massaging air dosage that can be factory-fitted to various model baths. The standard system comprises eight side jets.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1
The MicroJet Whirlsystem is a water jet whirlpool with massaging air dosage that can be factory-fitted to various model baths. The standard system comprises sixteen to twenty side jets.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1
The Hydrospa Whirlsystem is a combination of air jet whirlpool with electronically controlled dosage and water jet whirlpool with massaging air dosage that can be factory-fitted to various model baths. The standard system comprises up to twelve bottom jets and sixteen to twenty small side jets.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1
The AirJet Whirlsystem is a combination of air jet whirlpool with electronically controlled dosage and water jet whirlpool with massaging air dosage that can be factory-fitted to various model baths. The standard system comprises up to twelve bottom jets and eight side jets.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1
The AirJet Plus Whirlsystem is a combination of air jet whirlpool with electronically controlled dosage and water jet whirlpool with massaging air dosage that can be factory-fitted to various model baths. The standard system comprises up to twelve bottom jets plus eight side jets and and smaller jets at the head and foot.
Whirlsystems for wellbeing and relaxation. Choose between all air or water systems, or opt for a combination of both. LED light options add ambiance, conjuring colour moods, installable with or without a Whirlsystem.
5.1
5.1
5.1
Solid 50, side outlet - 0,6 l/s innovative waste fitting for showers with a slim profile, edges reduced to the minimum, and an absence of gaps and grills, eliminating blocked traps.
Designed for simple cleaning, the direct water flow with drainage of up to 36 liters per minute also delivers self-cleaning capacity during regular use.
Conventional traps inside waste fittings are constructed on two levels which creates dead spaces that can’t be reached when cleaning, and with fixation bars around the flanges that catch hair. Typical flow speeds under the shower are too low to effectively remove debris independently.
Solid has no dead spaces or bars on the inside as the trap has been moved away from the siphon pan and designed similarly to a siphon under the washbasin – a bend in the supply pipe to the drain system ensures that water is always present and performs as a conventional trap.
This keeps the siphon pan free and ensures it is easy to access from the outside for cleaning, even using a spiral. Even in the pipes past the pan there are only direct routes that are rinsed clear by the flowing water, and no edges to catch debris, keeping cleaning to a minimum.
Solid is available in two models Solid 30 in 48 mm installation height (water seal depth of 30 mm) and Solid 50 in 68 mm installation height (water seal depth 50 mm). Despite the unique profile, meeting space shortages under the showers, the slim fitting maintains extremely effective drainage capacity of 0.6 l/s (36 l/min), easily meeting the typical flow rate of most commercial rain and shower sprays is 0.3 l/s – with reserve capacity.
Twenty-four options available as shown in the gallery below.
Details:
Weight (Net): 0,35 kg
Scope of Delivery:
Inc. Filter

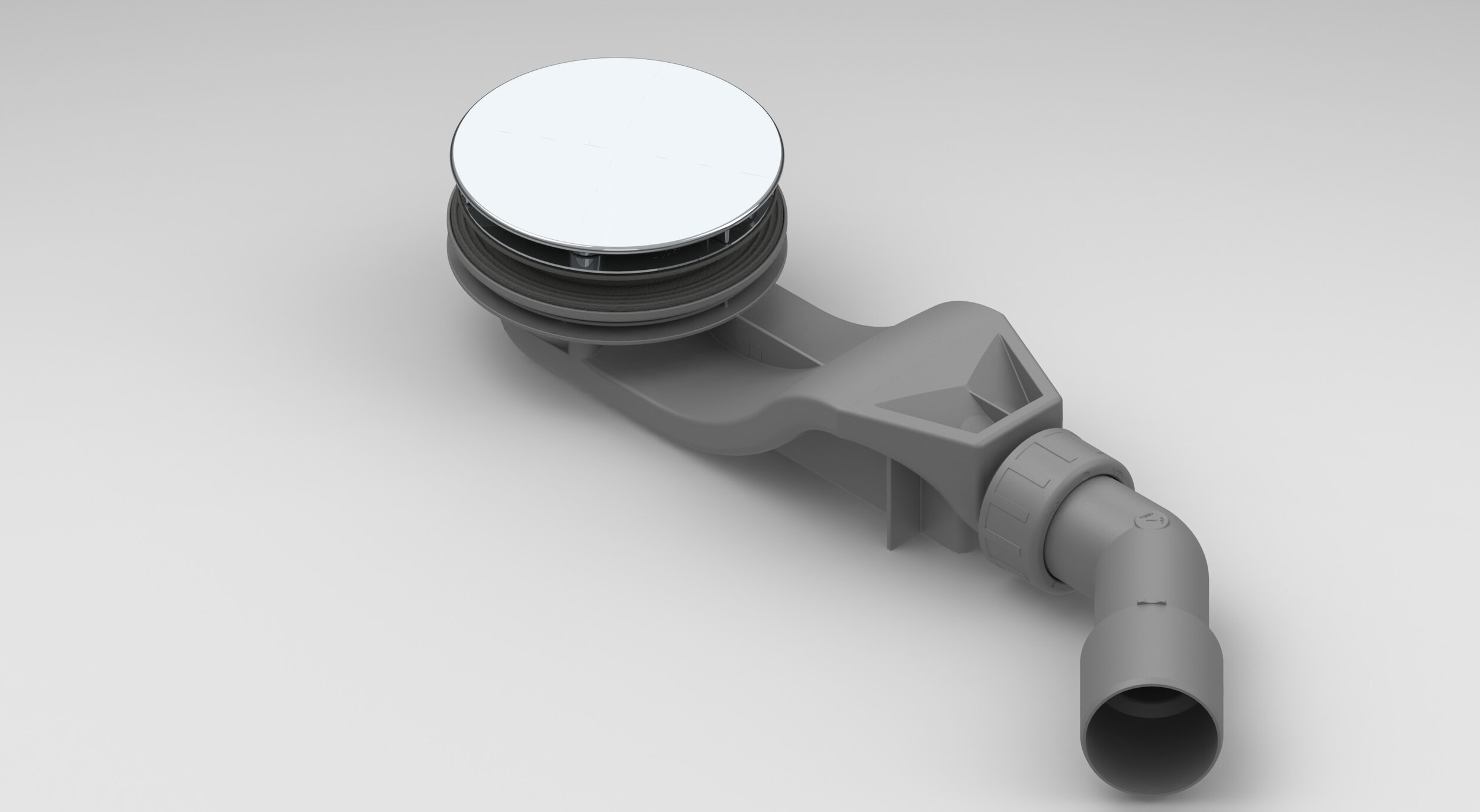

Solid 30, side outlet - 0,6 l/s innovative waste fitting for showers with a slim profile, edges reduced to the minimum, and an absence of gaps and grills, eliminating blocked traps.
Designed for simple cleaning, the direct water flow with drainage of up to 36 liters per minute also delivers self-cleaning capacity during regular use.
Conventional traps inside waste fittings are constructed on two levels which creates dead spaces that can’t be reached when cleaning, and with fixation bars around the flanges that catch hair. Typical flow speeds under the shower are too low to effectively remove debris independently.
Solid has no dead spaces or bars on the inside as the trap has been moved away from the siphon pan and designed similarly to a siphon under the washbasin – a bend in the supply pipe to the drain system ensures that water is always present and performs as a conventional trap.
This keeps the siphon pan free and ensures it is easy to access from the outside for cleaning, even using a spiral. Even in the pipes past the pan there are only direct routes that are rinsed clear by the flowing water, and no edges to catch debris, keeping cleaning to a minimum.
Solid is available in two models Solid 30 in 48 mm installation height (water seal depth of 30 mm) and Solid 50 in 68 mm installation height (water seal depth 50 mm). Despite the unique profile, meeting space shortages under the showers, the slim fitting maintains extremely effective drainage capacity of 0.6 l/s (36 l/min), easily meeting the typical flow rate of most commercial rain and shower sprays is 0.3 l/s – with reserve capacity.
Twenty-four options available as shown in the gallery below.
Details:
Weight (Net): 0,35 kg
Scope of Delivery:
Inc. Filter
The Down vertical outlet - 0,6 l/s pop-up waste can be installed with flat shower trays with a 90mm drain. The vertical fitting achieves a drainage capacity of 0.6 l/s with a water seal depth of 50mm. The installation height is 80 mm, reducible on-site via core drilling. The detachable cover and removal trap eases cleaning.
Thirty-one options available as shown in the gallery below.
Details:
Weight (Net): 0,64 kg
The Scope, side outlet - 0,85 l/s pop-up waste is ideal for flat shower trays with a 90mm drain. Beneficial for its high drainage capacity of 0.85 l/s and water seal depth of 50 mm. With an installation height of 65 mm, the fitting requires only a small amount of space under the shower tray. Scope is also easy to clean and includes an additional filter that catches the worst debris.
Thirty-one options available as shown in the gallery below.
Details:
Weight (Net): 1,03 kg
The slim clean design of this waste and overflow fitting integrates elegantly in our Art product range. The fitting has a drainage capacity of 0.87 l/s and is pre-fitted to the bath at works.
Two options available, white and chrome, as shown in the gallery below.
Details:
Weight (Net): 1,4 kg
The slim clean design of this 725 mm waste and overflow fitting integrates elegantly in our Art product range. The straight tap through the overflow body enhances the overall appearance of the bath. The fitting has a drainage capacity of 0.87 l/s and is pre-fitted to the bath at works.
Two options available, white and chrome, as shown in the gallery below.
Details:
Weight (Net): 1,6 kg
The Flow waste and overflow fitting is designed specifically for our washbasins without a built-in overflow. The length and height can be adjusted individually to any washbasin.
Two options available, white and chrome, as shown in the gallery below.
Details:
Weight (Net): ,387 kg
Our enamelled titanium steel fixtures are durable and robust. To maintain the brilliant finishes this enamel care stick is recommended, targeting stubborn deposits and dirt on the glaze. Simply moisten the affected area with water and rub the enamel care stick over it a few times. Not suitable for bathroom elements with the BetteGlaze® Plus or matte colour finishes.
Details:
Weight (Net): ,03 kg
